Standard No.
|
Stroke
|
A
|
B
|
Weight
Kg
|
|
SLS-40】 50 |
50 |
142
|
130
|
13.0
|
|
SLS-40】 75 |
75 |
167
|
155
|
13.3
|
|
SLS-40】100 |
100 |
192
|
180
|
13.6
|
|
SLS-40】125 |
125 |
217
|
205 |
14.1
|
|
SLS-40】150 |
150 |
242
|
230 |
14.4
|
|
SLS-40】175 |
175 |
267
|
255 |
14.9
|
|
SLS-40】200 |
200 |
292
|
280 |
15.2
|
|
SLS-40】225 |
225 |
317
|
305 |
15.5
|
|
SLS-40】250 |
250 |
342
|
330 |
15.9
|
|
SLS-40】275 |
275 |
367
|
355 |
16.2
|
|
SLS-40】300 |
300 |
392
|
380 |
16.5
|

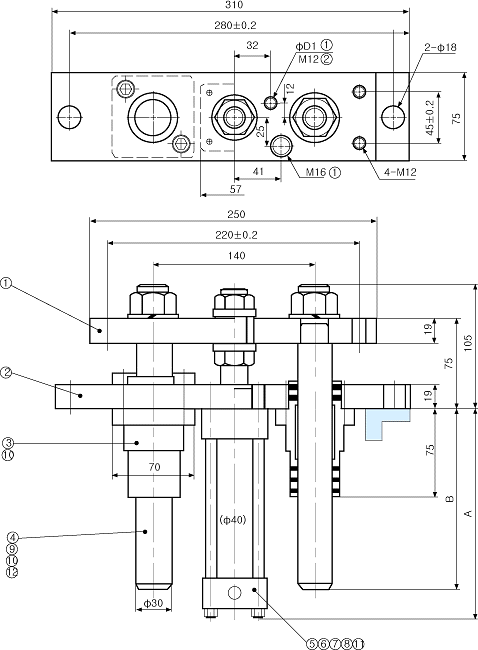

Component parts
|
|
No. |
Description |
Q'ty |
Material |
Note |
|
1 |
Lifting Plate |
1 |
SS41 |
|
|
2 |
Holder Plate |
1 |
SS41 |
|
|
3 |
Guide Holder |
2 |
#500F |
oilless |
|
4 |
Guide Shaft |
2 |
S45C |
|
|
5 |
Air Cylinder |
1 |
S M C |
CA2BN 40】ST |
|
6 |
Pipe |
1 |
STKM |
|
|
7 |
Washer |
1 |
SS41 |
|
|
8 |
Hex Nut |
2 |
SCM435 |
M14 |
|
9 |
Hex Nut |
2 |
SCM435 |
M24 |
|
10 |
Wrench Bolt |
4 |
SCM435 |
M12】30 |
|
11 |
Washer |
1 |
SS41 |
M14 |
|
12 |
Spring Washer |
2 |
|
M24 |
|
Ordering example : SLS-40】50
|
|
|
|
|
 |
|
|
SLS-40
|
