Standard No.
|
Stroke
|
A
|
B
|
Weight
Kg
|
|
SLS-80】 50 |
50 |
179
|
130
|
19.2
|
|
SLS-80】 75 |
75 |
204
|
155
|
19.5
|
|
SLS-80】100 |
100 |
229
|
180
|
20.0
|
|
SLS-80】125 |
125 |
254
|
205 |
20.6
|
|
SLS-80】150 |
150 |
279
|
230 |
21.1
|
|
SLS-80】175 |
175 |
304
|
255 |
21.5
|
|
SLS-80】200 |
200 |
329
|
280 |
22.2
|
|
SLS-80】225 |
225 |
354
|
305 |
22.9
|
|
SLS-80】250 |
250 |
379
|
330 |
23.6
|
|
SLS-80】275 |
275 |
404
|
355 |
24.3
|
|
SLS-80】300 |
300 |
429
|
380 |
25.1
|

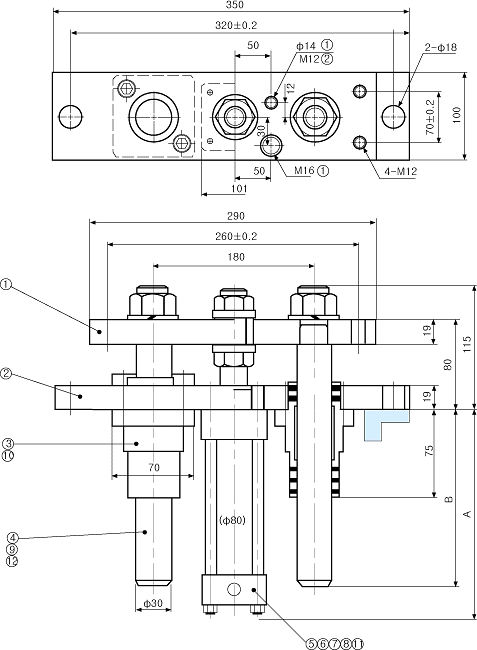

Component parts
|
|
No. |
Description |
Q'ty |
Material |
Note |
|
1 |
Lifting Plate |
1 |
SS41 |
|
|
2 |
Holder Plate |
1 |
SS41 |
|
|
3 |
Guide Holder |
2 |
#500F |
oilless |
|
4 |
Guide Shaft |
2 |
S45C |
|
|
5 |
Air Cylinder |
1 |
S M C |
CA2BN 80】ST |
|
6 |
Pipe |
1 |
STKM |
|
|
7 |
Washer |
1 |
SS41 |
|
|
8 |
Hex Nut |
2 |
SCM435 |
M22 |
|
9 |
Hex Nut |
2 |
SCM435 |
M24 |
|
10 |
Wrench Bolt |
4 |
SCM435 |
M12】30 |
|
11 |
Washer |
1 |
SS41 |
M22 |
|
12 |
Spring Washer |
2 |
SUJ
|
M24 |
|
Ordering example : SLS-80】50
|
|
|
|
|
 |
|
|
