Standard No
|
Stroke
|
A
|
B
|
Weight
Kg
|
|
SLS-63】 50 |
50 |
158
|
130
|
16.1
|
|
SLS-63】 75 |
75 |
183
|
155
|
16.4
|
|
SLS-63】100 |
100 |
208
|
180
|
16.8
|
|
SLS-63】125 |
125 |
233
|
205 |
17.4
|
|
SLS-63】150 |
150 |
258
|
230 |
17.7
|
|
SLS-63】175 |
175 |
283
|
255 |
18.3
|
|
SLS-63】200 |
200 |
308
|
280 |
18.6
|
|
SLS-63】225 |
225 |
333
|
305 |
19.0
|
|
SLS-63】250 |
250 |
358
|
330 |
19.4
|
|
SLS-63】275 |
275 |
383
|
355 |
19.8
|
|
SLS-63】300 |
300 |
408
|
380 |
20.1
|

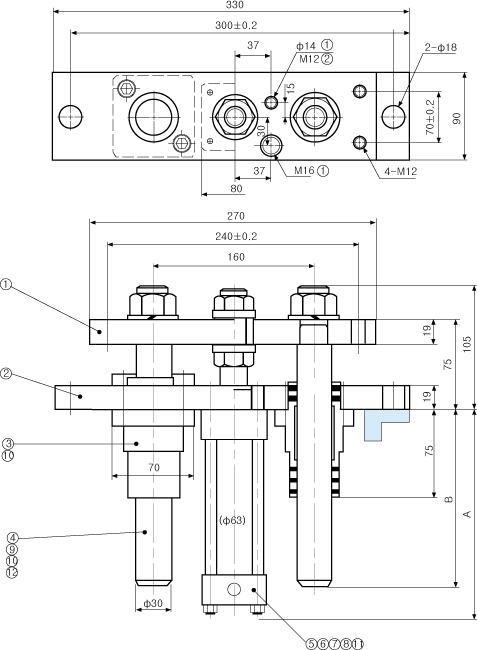

Component parts
|
|
No. |
Description |
Q'ty |
Material |
Note |
|
1 |
Lifting Plate |
1 |
SS41 |
|
|
2 |
Holder Plate |
1 |
SS41 |
|
|
3 |
Guide Holder |
2 |
#500F |
oilless |
|
4 |
Guide Shaft |
2 |
S45C |
|
|
5 |
Air Cylinder |
1 |
SMC
|
CA2BN 63】ST |
|
6 |
Pipe |
1 |
STKM |
|
|
7 |
Washer |
1 |
SS41 |
|
|
8 |
Hex Nut |
2 |
SCM435 |
M18 |
|
9 |
Hex Nut |
2 |
SCM435 |
M24 |
|
10 |
Wrench Bolt |
4 |
SCM435 |
M12】30 |
|
11 |
Washer |
1 |
SS41 |
M18 |
|
12 |
Spring Washer |
2 |
SUJ
|
M24 |
|
Ordering example : SLS-63】50
|
|
|
|
|
 |
|
|
