| SKFL |

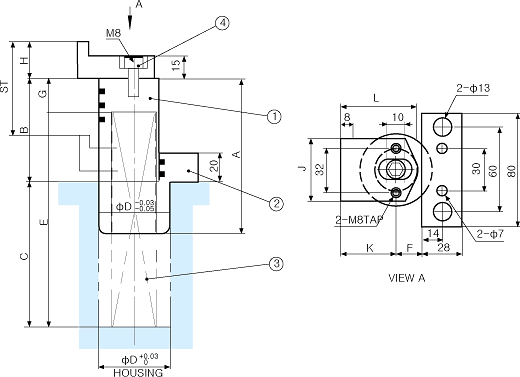

FLANGE LIFTER(without spring)
|
|
|
|
|
Standard No
|
ST
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
L
|
|
SKFL-50×100 |
50 |
110 |
75 |
105
|
50
|
155
|
19
|
25
|
25
|
45
|
40
|
55
|
|
SKFL-60×150 |
80 |
160 |
105 |
155
|
60
|
230
|
25
|
30
|
25
|
50
|
40
|
60
|
|
SKFL-75×200 |
100 |
200 |
125 |
195
|
75
|
280
|
30
|
40
|
30
|
60
|
55
|
75
|
Reference 스프링 장착시 참조
|
|
Standard
No. |
Spring size |
Initial |
Final |
|
O.D×I.D×Length
mm |
Length
mm |
Load
N |
Length
mm |
Load
N |
|
SKFL-50×100 |
HF 30×175 |
155 |
160 |
105 |
580 |
|
SKFL-60×150 |
HF 40×250 |
230 |
200 |
150 |
1020
|
|
SKFL-75×200 |
HF 50×300 |
280 |
260 |
180 |
1600 |
|
Component parts
|
|
No. |
Description |
Q'ty |
Material |
Note |
|
1 |
Slide pin |
1 |
S20C+GR |
oilless
|
|
2 |
Stopper Plate |
1 |
S45C+GR |
oilless
|
|
3 |
Spring |
1 |
SUP |
|
|
4 |
Lift block |
1 |
S45C |
|
|
Ordering example : SKFL-50×100
|
|
|
|
|
 |
|
|
