Standard No.
|
Stroke
|
A
|
B
|
Weight
Kg
|
|
SOML-40】 25 |
25 |
117
|
105
|
8.5
|
|
SOML-40】 50 |
50 |
142
|
130
|
8.9
|
|
SOML-40】 75 |
75 |
167
|
155
|
9.3
|
|
SOML-40】100 |
100 |
192
|
180 |
9.7
|
|
SOML-40】125 |
125 |
217
|
205 |
10.1
|
|
SOML-40】150 |
150 |
242
|
230 |
10.5
|
|
SOML-40】175 |
175 |
267
|
255 |
10.9
|
|
SOML-40】200 |
200 |
292
|
280 |
11.3
|

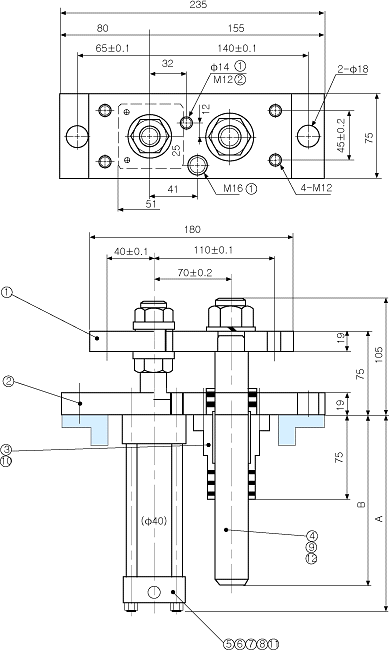

Component parts
|
|
No. |
Description |
Q'ty |
Material |
Note |
|
1 |
Lifting Plate |
1 |
SS41 |
|
|
2 |
Holder Plate |
1 |
SS41 |
|
|
3 |
Guide Holder |
1 |
#500F |
oilless |
|
4 |
Guide Shaft |
1 |
S45C |
|
|
5 |
Air Cylinder |
1 |
SMC
|
CA2BN 40】ST |
|
6 |
Collar |
1 |
SS41 |
|
|
7 |
Washer |
1 |
SS41 |
|
|
8 |
Hex Nut |
2 |
SCM435 |
M14 |
|
9 |
Hex Nut |
1 |
SCM435 |
M24 |
|
10 |
Wrench Bolt |
2 |
SCM435 |
M12】30 |
|
11 |
Washer |
1 |
SS41 |
M14 |
|
12 |
Spring Washer |
1 |
SUMJ
|
M24 |
|
Ordering example : SOML-40】50
|
|
|
|
|
 |
|
|
