Specification
|
|
Spring size
|
Initial
|
Final
|
Stroke
mm
|
|
Out Dia.
mm |
Free length
mm |
Length
mm |
Load
N |
Length
mm |
Load
N |
|
35 |
150 |
138 |
160 |
88
|
810
|
50
|
|

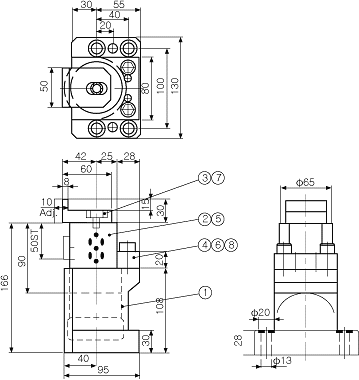

Component parts
|
|
No. |
Description |
Q'ty |
Material |
Note |
|
1 |
Housing |
1 |
FC25 |
|
|
2 |
Slide pin |
1 |
S20C+GR |
oilless
|
|
3 |
Lift block |
1 |
S45C |
|
|
4 |
Stopper |
1 |
S45C |
|
|
5 |
Spring |
1 |
SUP |
TF35】150
|
|
6 |
Wrench Bolt |
2 |
SCM435 |
M12】40
|
|
7 |
Wrench Bolt |
1 |
SCM435 |
M8】20
|
|
8 |
Dowel pin |
2 |
SUJ |
8】30 |
|
Ordering example : SFL-50V
|
|
|
|
|
 |
|
|
