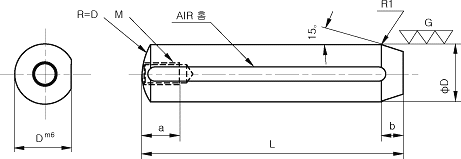

맞춤핀(DOWEL PIN)

호칭치수

M × PITCH

   a

m6

  TYPE

   D

L

   b

6

M4 × 0.7

8

+0.012
+0.004

MSTM

6

     20, 30, 40

2.0

8

M5 × 0.8

+0.015
+0.006

8

     20, 30, 40, 50, 60

2.5

10

M6 × 1.0

10

10

     30, 40, 50, 60

3.0

12

+0.018
+0.007

12

     40, 50, 60, 70

3.5

13

M8 × 1.25

15

13

     40, 50, 60, 70

4.0

16

16

     50, 60, 70, 80

20

M10 × 1.5

18

+0.021
 +0.008

20

     70, 80

4.5
