규격표 |
|
단위 m/m
|
|

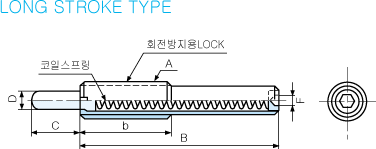

PART NO.
|
A
|
B
|
C
|
D
|
F
|
SPRING
|
|
Min/Max
|
|
SPS -5H
|
M5 P0.8
|
12.0
|
1.5
|
3.0
|
2.5
|
0.5 / 1.5
|
|
SPS-6H
|
M6 P1.0
|
13.0
|
1.5
|
3.0
|
3.0
|
0.6 / 2.0
|
|
SPS-8H
|
M8 P1.25
|
15.0
|
2.0
|
4.0
|
4.0
|
0.6 / 2.0
|
|
SPS-10H
|
M10 P1.5
|
18.0
|
2.5
|
5.0
|
5.0
|
1.0 / 3.0
|
|
SPS-12H
|
M12 P1.75
|
20.0
|
3.5
|
6.0
|
6.0
|
1.0 / 3.0
|
|
SPS-16H
|
M16 P2.0
|
22.0
|
4.5
|
8.0
|
8.0
|
2.0 / 6.0
|
|
PART NO.
|
A
|
B
|
C
|
D
|
F
|
스프링압(kg)
|
|
Min/Max
|
|
SPS -5L
|
M5 P0.8
|
12.0
|
1.5
|
3.0
|
2.5
|
0.2 / 0.8
|
|
SPS -6L
|
M6 P1.0
|
13.0
|
1.5
|
3.0
|
3.0
|
0.3 / 1.0
|
|
SPS -8L
|
M8 P1.25
|
15.0
|
2.0
|
4.0
|
4.0
|
0.3 / 1.0
|
|
SPS -10L
|
M10 P1.5
|
18.0
|
2.5
|
5.0
|
5.0
|
0.5 / 1.5
|
|
SPS -12L
|
M12 P1.75
|
20.0
|
3.5
|
6.0
|
6.0
|
0.5 / 1.5
|
|
SPS -16L
|
M16 P2.0
|
22.0
|
4.5
|
8.0
|
8.0
|
1.0 / 3.0
|
|
| |
| |
|
|
|
|
|

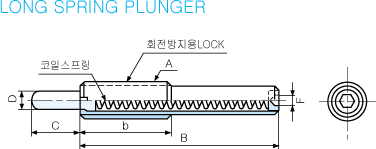

PART NO.
|
A
|
B
|
C
|
D
|
F
|
스프링압(kg)
|
적용렌치
|
|
Min/Max
|
|
SP-3H
|
M3 P0.5
|
10.0
|
1.5
|
1.0
|
0.8
( )
|
0.05 / 0.3
|
드라이버
|
|
SP-4H
|
M4 P0.7
|
12.0
|
2.0
|
1.6
|
0.8
( )
|
0.2 / 1.0
|
드라이버
|
|
SP-5H
|
M5 P0.8
|
20.0
|
3.0
|
2.0
|
1.5
|
0.4 / 2.0
|
PW - 5
|
|
SP-6H
|
M6 P1.25
|
25.0
|
3.0
|
2.5
|
2.0
|
0.8 / 3.0
|
PW - 6
|
|
SP-8H
|
M8 P1.25
|
25.0
|
3.0
|
3.1
|
2.5
|
0.8 / 3.0
|
PW - 8
|
|
SP-10H
|
M10 P1.5
|
30.0
|
5.0
|
3.8
|
3.0
|
1.0 / 5.0
|
PW - 10
|
|
SP-12H
|
M12 P1.75
|
30.0
|
5.0
|
5.5
|
4.0
|
1.0 / 5.0
|
PW -12
|
|
PART NO.
|
A
|
B
|
C
|
D
|
F
|
스프링압(kg)
|
적용렌치
|
|
Min/Max
|
|
SP-5LS
|
M5 P0.8
|
13.0
|
3.0
|
2.0
|
1.5
|
0.2 / 0.8
|
PW - 5
|
|
SP-5L
|
M5 P0.8
|
20.0
|
3.0
|
2.0
|
1.5
|
0.2 / 1.0
|
PW - 5
|
|
SP-6L
|
M6 P1.0
|
25.0
|
3.0
|
2.5
|
2.0
|
0.3 / 1.0
|
PW - 6
|
|
SP-8L
|
M8 P1.25
|
25.0
|
3.0
|
3.1
|
2.5
|
0.3 / 1.0
|
PW - 8
|
|
SP-10L
|
M10 P1.5
|
30.0
|
5.0
|
3.8
|
3.0
|
0.3 / 1.5
|
PW - 10
|
|
SP-12L
|
M12 P1.75
|
30.0
|
5.0
|
5.5
|
4.0
|
0.2 / 1.0
|
PW - 12
|
|
|
|
| |
 |
|
|
