■ 발주방법
|
TYPE - (L)
예) MEX50 - 62
|
|

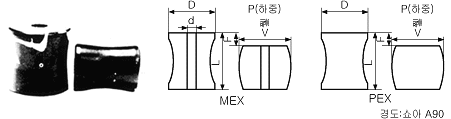

■ 규격표
|
|
단위 m/m
|
TYPE |
D |
L |
F=L×20% |
F=L×25% |
F=L×30% |
30% V
변형 |
Fmm |
Pkg |
Fmm |
Pkg |
Fmm |
Pkg |
MEX 50-62 |
50 |
14 |
12 |
700 |
15 |
910 |
18 |
1300 |
58 |
MEX 50-82 |
50 |
16 |
20 |
24 |
MEX 60-62 |
60 |
20 |
12 |
1000 |
15 |
1350 |
18 |
1900 |
70 |
MEX 60-82 |
60 |
16 |
20 |
24 |
MEX 80-82 |
80 |
20 |
16 |
1950 |
20 |
2700 |
24 |
4000 |
92 |
MEX 80-103 |
80 |
20 |
25 |
30 |
MEX 100-82 |
100 |
- |
16 |
2850 |
20 |
3950 |
24 |
5550 |
114 |
MEX 100-103 |
100 |
20 |
25 |
30 |
MEX 100-123 |
100 |
24 |
30 |
36 |
|
|
|
|
 |
|
|
MS
|
