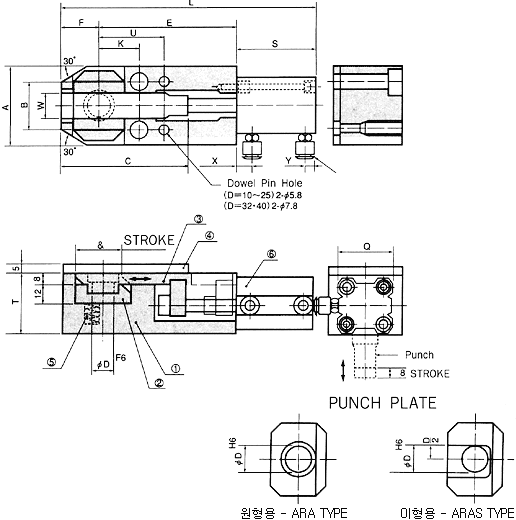

 ARA(ARAS)

CHANGE RETAINERS (CYLINDER TYPE)

No.

품명

재질

경도

1

본체

S45C

2

Punch Plate

SK4

HRC56-60

3

Cam

SK4

HRC56-60

4

Backing Plate

SK4

HRC56-60

5

Spring

6

Cylinder

 　 　
부속부품

(각 2EA)

D

Dowel Pin

렌치 Bolt

모두 Bolt

10

Ø6×30

M8×50

M8×10

13~25

Ø6×30

M10×50

M8×10

32 · 40

Ø8×30

M12×50

M10×10
 ■ 규격표

TYPE

 D

L

A

B

C

E

F

K

Q

S

&

T

U

W

X

Y

Cylinder

적용
Punch

원형용

이형용

ARA10

ARAS10

10

160.5

46

30

81

86

25

25

36

49.5

30

40

41

16

9

5.5

20~30DM

AJX
AJ_

APX
AP_

ARA13

ARAS13

13

160.5

50

30

81

86

25

25

36

49.5

30

40

41

16

9

5.5

ARA16

ARAS16

16

ARA20

ARAS20

20

184.5

58

38

85

100

25

29

36

59.5

40

40

45

25

9

5.5

20~40DM

ARA25

ARAS25

25

ARA32

ARAS32

32

244.5

80

56

115

130

35

38

52

79.5

50

50

60

38

11

8

40~50DM

ARA40

ARAS40

40
 ■ 주문방법
   TYPE    D    수량
   ARA      20    5EA
