| CRT(BRT) |

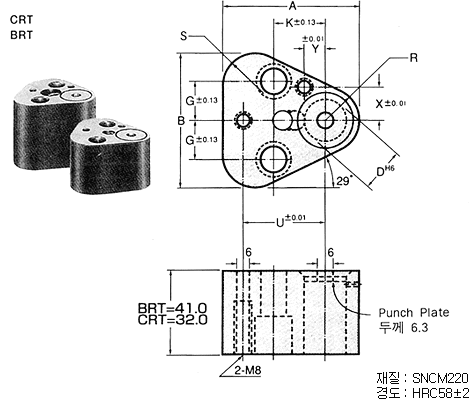

BALL-LOCK RETAINERS
|
|
|
|
| ■
규격표 |
|
TYPE
|
D
|
A
|
B
|
G
|
K
|
R
|
S
|
U
|
X
|
Y
|
Bolt
|
|
경하중용
|
중하중용
|
|
CRT |
BRT |
10 |
44.5 |
43.7 |
11.1 |
19.0 |
9.5 |
12.0 |
26.925 |
9.0 |
7.5 |
M 8 |
|
CRT |
BRT |
13 |
50.8 |
50.0 |
14.3 |
19.0 |
12.7 |
15.2 |
29.970 |
12.0 |
6.5 |
M 8 |
|
CRT |
BRT |
16 |
54.0 |
53.2 |
15.9 |
19.0 |
14.3 |
16.8 |
31.750 |
13.5 |
6.0 |
M 8 |
|
CRT |
BRT |
20 |
60.3 |
59.5 |
17.5 |
19.0 |
17.5 |
20.0 |
33.530 |
16.5 |
5.0 |
M10 |
|
CRT |
BRT |
25 |
69.9 |
69.1 |
19.8 |
23.8 |
22.2 |
24.7 |
40.640 |
22.0 |
7.0 |
M12 |
|
CRT |
BRT |
32 |
69.9 |
69.1 |
19.8 |
23.8 |
22.2 |
24.7 |
40.640 |
22.0 |
7.0 |
M12 |
|
CRT |
- |
38 |
77.4 |
76.6 |
24.0 |
27.0 |
26.0 |
28.5 |
43.993 |
26.0 |
10.0 |
M12 |
|
- |
BRT |
40 |
77.4 |
76.6 |
24.0 |
27.0 |
26.0 |
28.5 |
43.993 |
26.0 |
10.0 |
M12 |
| ■
주문방법 |
TYPE D 수량
CRT 20 10EA |
|
|
|
|
 |
|
