| ART(ARTS) |

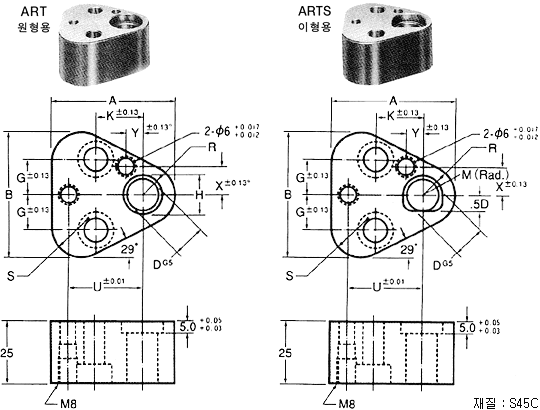

HEADED PUNCH RETAINERS
|
|
|
|
| ■
규격표 |
|
TYPE
|
D
|
A
|
B
|
ART
|
G
|
K
|
ARTS
|
R
|
S
|
U
|
X
|
Y
|
Bolt
|
|
H
|
M
|
|
ART
ARTS |
10 |
44.5 |
43.7 |
14.0 |
11.1 |
19.0 |
7.0 |
9.5 |
12.0 |
26.925 |
9.0 |
7.5 |
M 8 |
|
13 |
50.8 |
50.0 |
17.0 |
14.3 |
19.0 |
8.5 |
12.7 |
15.2 |
29.970 |
12.0 |
6.5 |
M 8 |
|
16 |
54.0 |
53.2 |
20.0 |
15.9 |
19.0 |
10.0 |
14.3 |
16.8 |
31.750 |
13.5 |
6.0 |
M 8 |
|
20 |
60.3 |
59.5 |
24.0 |
17.5 |
19.0 |
12.0 |
17.5 |
20.0 |
33.530 |
16.5 |
5.0 |
M10 |
|
25 |
69.9 |
69.1 |
29.0 |
19.8 |
23.8 |
14.5 |
22.2 |
24.7 |
40.640 |
22.0 |
7.0 |
M12 |
|
32 |
69.9 |
69.1 |
36.0 |
19.8 |
23.8 |
18.0 |
22.2 |
24.7 |
40.640 |
22.0 |
7.0 |
M12 |
| ■
주문방법 |
TYPE D 수량
ART 10 10EA |
|
|
|
|
 |
|
