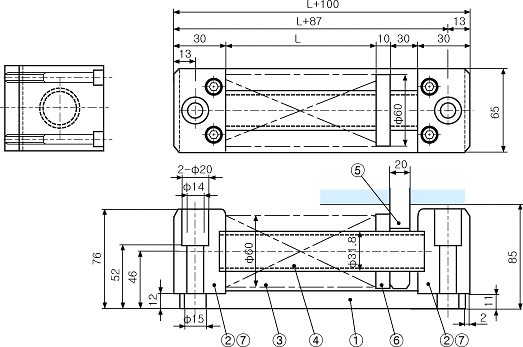

SPRING UNIT

Standard No

L

Spring
(Type ØD ×
length)

Normal value

Normal value

Spring Const.
K
N/mm

Deflection
mm

Load
N

Deflection
mm

Load
N

 SCSU-L60(A) × 125

 125

TL60 × 125

40

3890

50

4860

97.2

SCSU-L60(B) × 125

SCSU-L60(C) × 125

SCSU-L60(A) × 150

150

TL60 × 150

48

60

81.0

SCSU-L60(B) × 150

SCSU-L60(C) × 150

SCSU-L60(A) × 175

175

TL60 × 175

56

70

69.4

SCSU-L60(B) × 175

SCSU-L60(C) × 175

SCSU-L60(A) × 200

200

TL60 × 200

64

80

60.7

SCSU-L60(B) × 200

SCSU-L60(C) × 200

SCSU-L60(A) × 250

250

TL60 × 250

80

100

48.6

SCSU-L60(B) × 250

SCSU-L60(C) × 250

SCSU-L60(A) × 300

300

TL60 × 300

96

120

40.5

SCSU-L60(B) × 300

SCSU-L60(C) × 300
