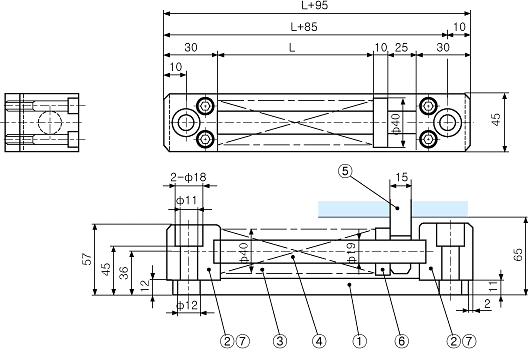

SPRING UNIT

Standard No

L

Spring
(Type ØD ×
length)

Normal value

Normal value

Spring Const.
K
N/mm

Deflection
mm

Load
N

Deflection
mm

Load
N

 SCSU-L40(A) × 125

 125

TL40 × 125

40

1730

50

2160

43.2

SCSU-L40(B) × 125

SCSU-L40(C) × 125

SCSU-L40(A) × 150

150

TL40 × 150

48

60

36.0

SCSU-L40(B) × 150

SCSU-L40(C) × 150

SCSU-L40(A) × 175

175

TL40 × 175

56

70

30.8

SCSU-L40(B) × 175

SCSU-L40(C) × 175

SCSU-L40(A) × 200

200

TL40 × 200

64

80

27.0

SCSU-L40(B) × 200

SCSU-L40(C) × 200

SCSU-L40(A) × 250

250

TL40 × 250

80

100

21.6

SCSU-L40(B) × 250

SCSU-L40(C) × 250
