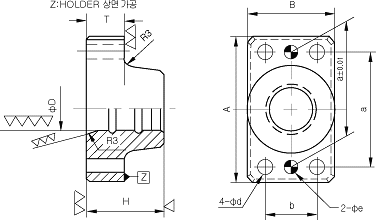

D(호칭치수) |
A |
B |
a |
b |
d |
H |
T |
e |
25 |
+0.041
+0.031 |
84 |
48 |
66 |
30 |
9 |
45 |
20 |
8 |
+0.015
0 |
32 |
+0.047
+0.037 |
100 |
58 |
76 |
36 |
11 |
50 |
20 |
8 |
38 |
+0.049
+0.037 |
130 |
75 |
100 |
44 |
11 |
60 |
25 |
10 |
+0.018
0 |
45 |
+0.052
+0.037 |
146 |
84 |
116 |
54 |
11 |
75 |
25 |
10 |
50 |
+0.052
+0.037 |
155 |
90 |
125 |
60 |
14 |
85 |
25 |
10 |
60 |
+0.061
+0.043 |
190 |
120 |
150 |
80 |
18 |
100 |
30 |
12 |
|
|
| ■ 주문방법
: |
PGBA × 호칭치수 × Z(Z표기시 Z면가공) |
|
|
