 TOSS  TSP0750

GAS SPRING

 ■ 규격 표시 방법
GAS SPRING
TSP0500 X 050 S(or F) - 150
MODEL   STROKE 단독형-S
배관형-F		   충전압력
(Bar)
MOUNT
SP0300
REPAIR KIT
RCX0500
*TSP0500은 충전 압력을 별도로 지정하지 않을 경우 표준충전압력(150Bar)으로 출고됩니다.

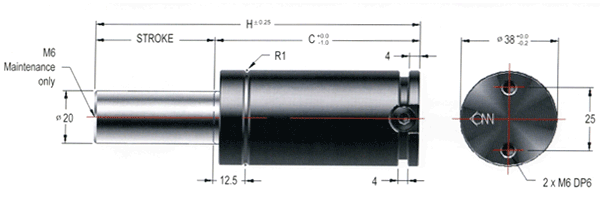

 ■ 사양표



TSP0500

STROKE

H

C
Force(N)
(150bar/+20℃)
Gas
vol.
(㎤)

(㎤)
(㎤)
Initial
End
force*

10
0.39

50

40
4,700
6,700
10.4
13
0.51
56
43
6,800
13.1

16
0.63

62

46
6,900
15.7

20
0.79

70

50
7,000
19.3

25
0.98

80

55
7,100
23.7

30
1.18

90

60
7,100
28.2

35
1.38

100

65
7,100
32.6

38
1.50

106

68
7,100
35.3

40
1.57

110

70
7,100
37.0

45
1.77

120

75
7,100
41.5

50
1.97

130

80
7,200
45.9

60
2.36

150

90
7,200
54.8

63
2.48

156

93
7,200
57.4

70
2.76

170

100
7,200
63.6
75
2.95
180
105
7,200
68.1
80
3.15
190
110
7,200
72.5
90
3.54
210
120
7,200
81.4
100
3.94
230
130
7,200
90.3
125
4.92
280
155
7,200
112.4
                            *=at full stroke

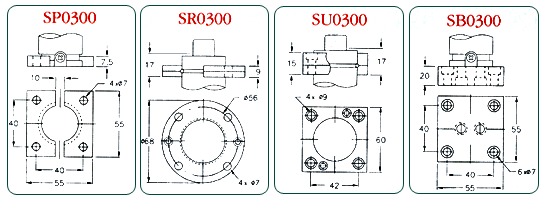

 ■ Mount Type

Top
